About the Design
A repertory house light plot drafted for the Courtyard Theatre, hung for The Secret Garden at Brick Road Theatre. The rig is organized as an area system across the lettered acting zones (A–P) on six electrics, supported by front light off two catwalks, a cyc wash, gobo texture and SeaChanger color specials.
House Plot & Masking
Drafted in Vectorworks at 1/2" = 1'-0". The house plot covers the full FOH hang — CAT 1 and CAT 2 front light plus the six overhead electrics — while the masking plot shows the same rig keyed against the masking legs and borders so focus stays clean of the soft goods.

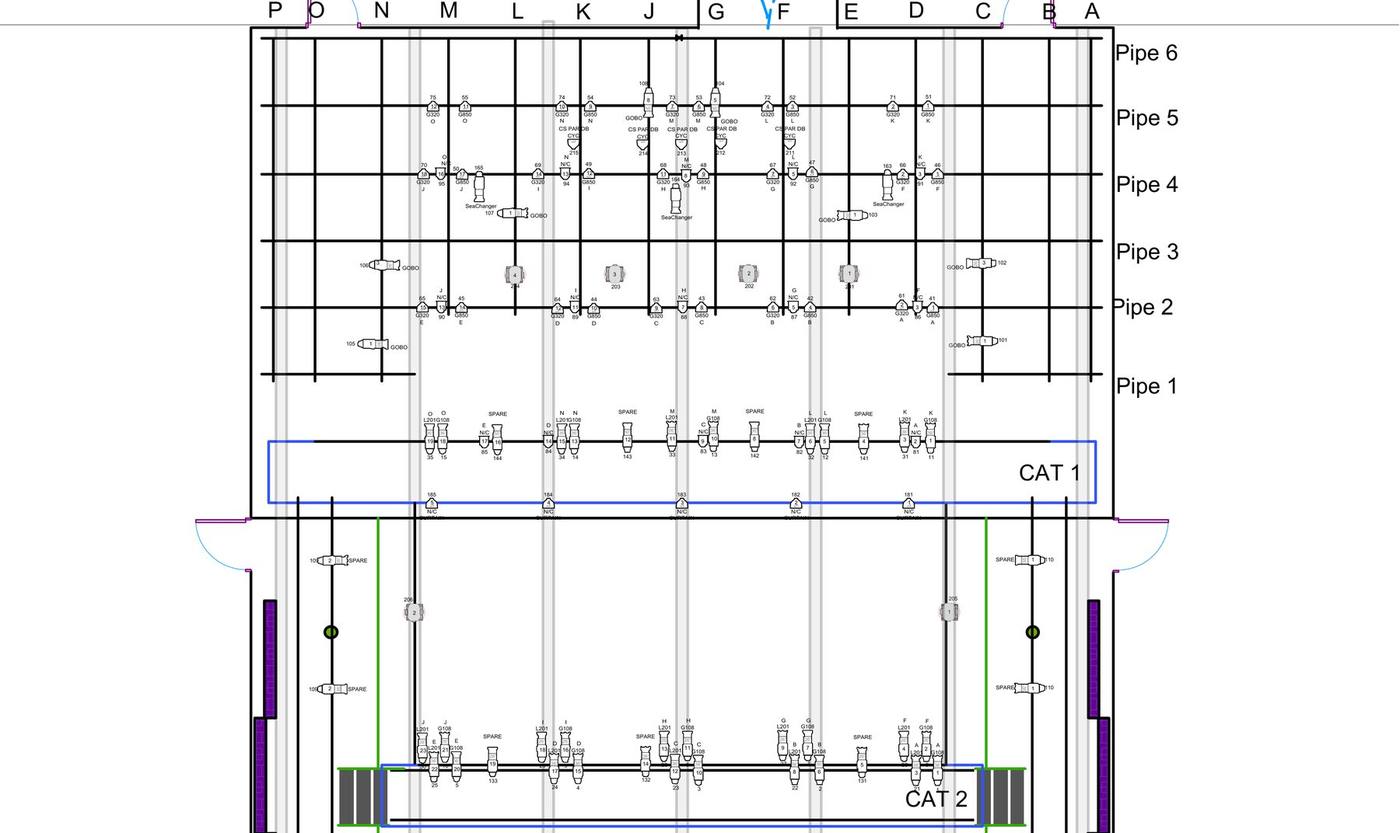

House light plot — CAT 1 & CAT 2 front light with six overhead electrics, lettered area system A–P.

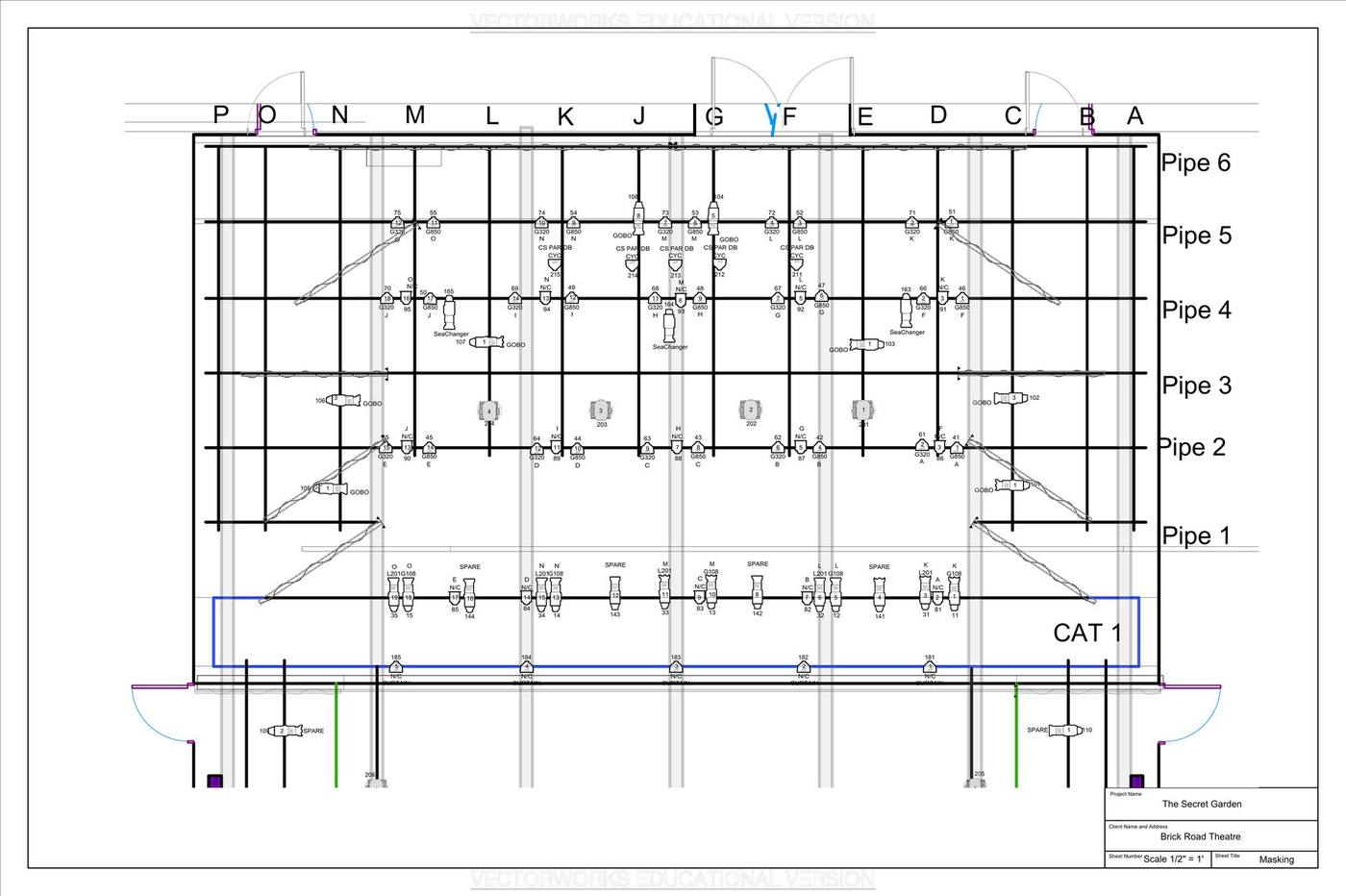

Masking plot — the rig referenced against masking legs, borders & mid curtains.
Magic Sheet
The companion magic sheet for the house rig — a channel-by-channel reference for the board op covering the full system: warm and cool front-light areas (A–O), the down/back PAR washes in cool, warm and no-color, pattern and SeaChanger specials, the Elation moving lights and ColorSource cyc, hazer and house/work-light utilities.

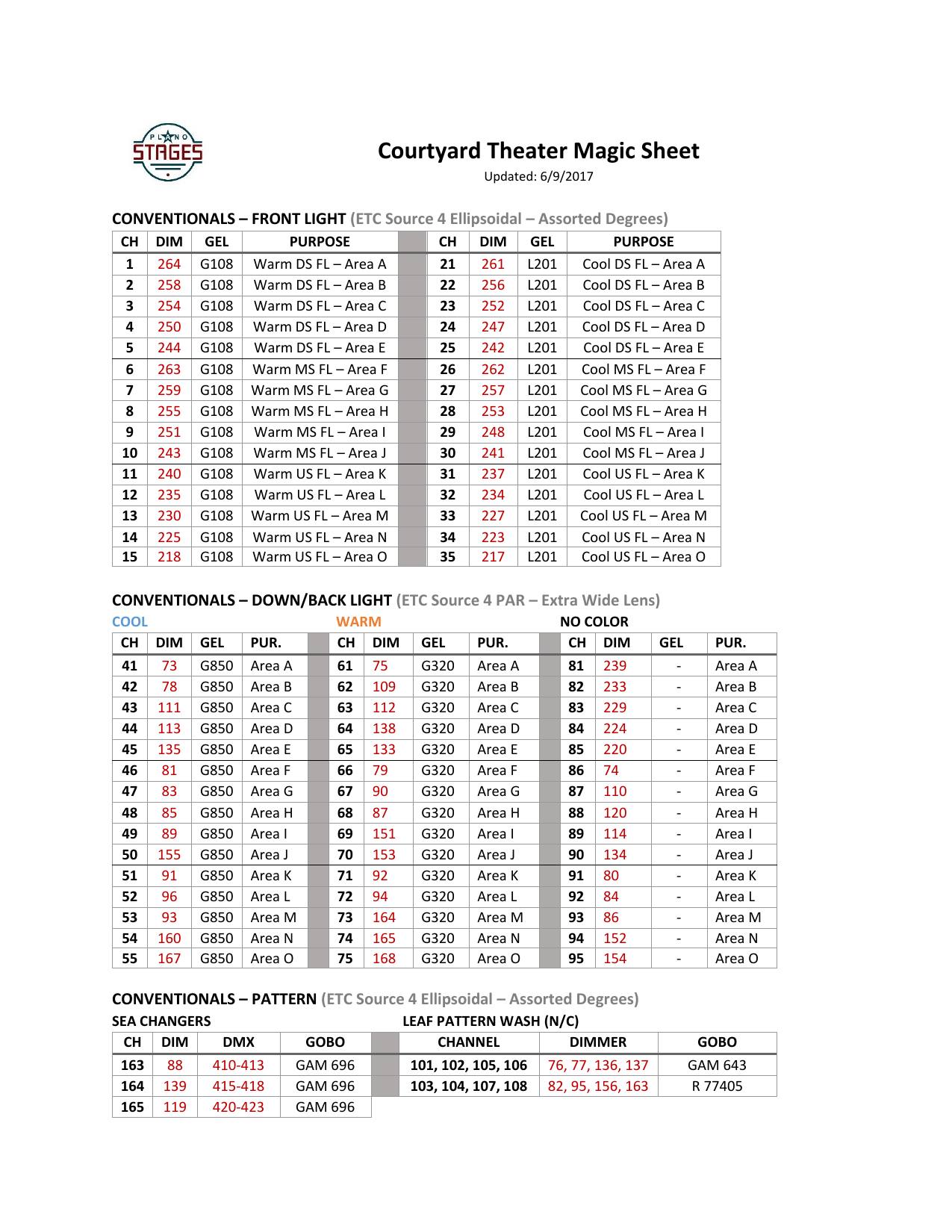

Magic sheet, page 1 — conventional front light, down/back PAR washes & pattern specials.

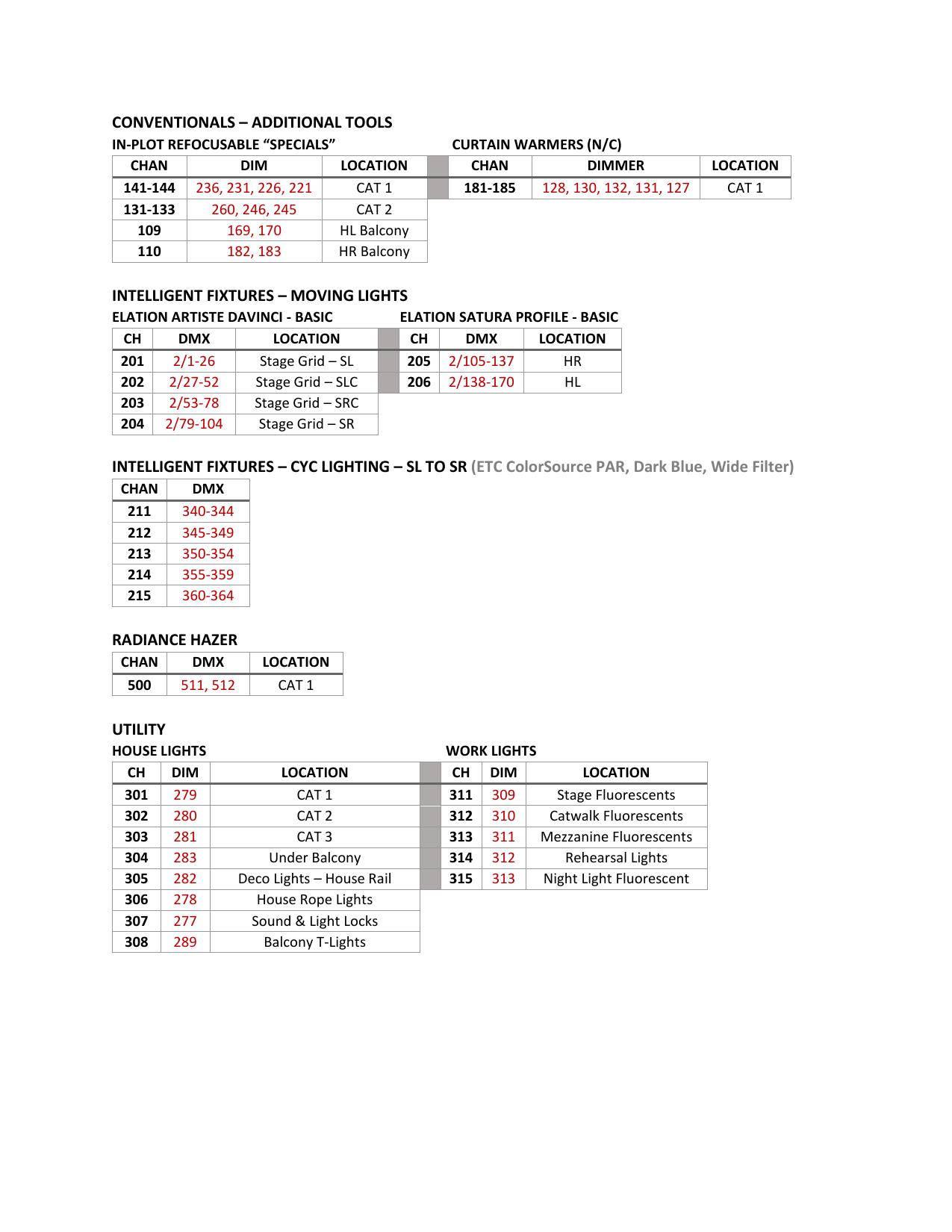

Magic sheet, page 2 — in-plot specials, intelligent fixtures, cyc, hazer & utility channels.
House plot and masking plot drafted in Vectorworks for the Courtyard Theatre, hung for The Secret Garden.
Plots exported from Vectorworks (educational license watermark visible). Clean re-exports can be swapped in later.
