About the Design
A drafted lighting plot for Shaw's Misalliance in the round, drafted for the Greer Garson Theatre. A dense overhead pipe grid plus balcony and gallery rail positions wrap the thrust on all sides.
Plot, Section & Magic Sheet
Drafted in Vectorworks at 1/2" = 1'-0". Conventional rig — Strand SL profiles and SPX units keyed to a full channel hookup. A centerline section establishes the throw angles and trim heights, and a magic sheet groups the rig by system for quick board operation.

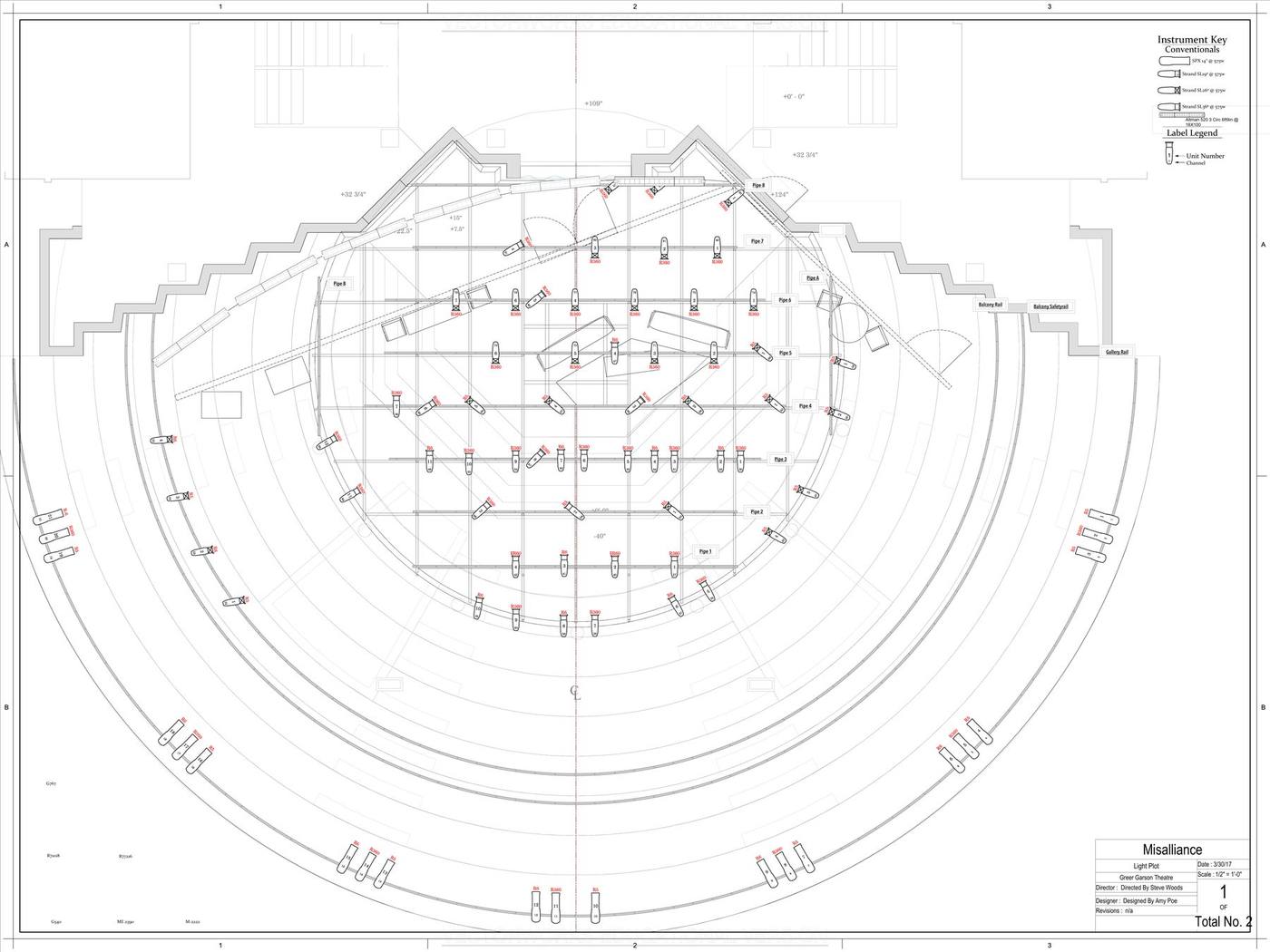

Light plot — Greer Garson Theatre (in the round).

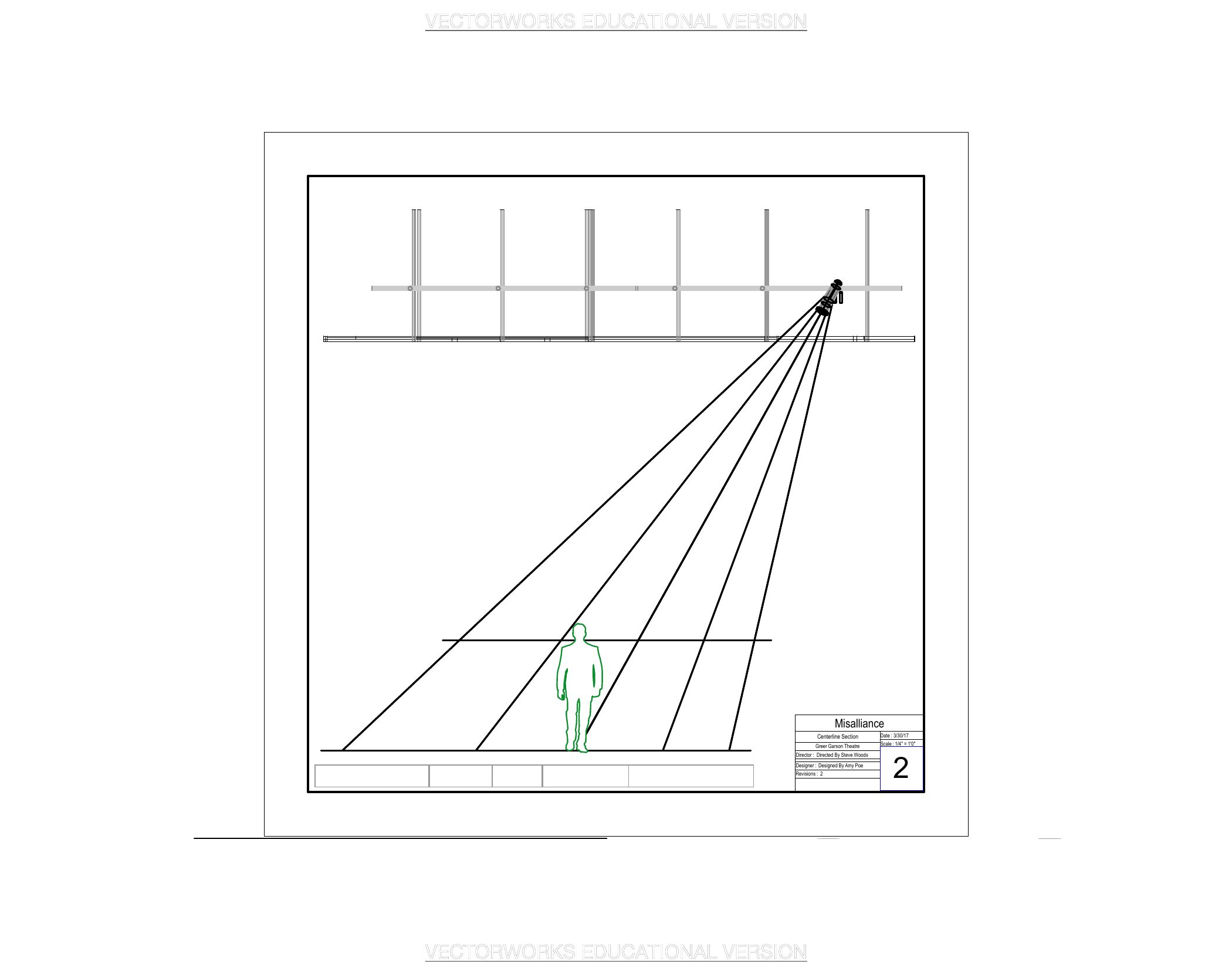

Centerline section — throw angles & trim heights.

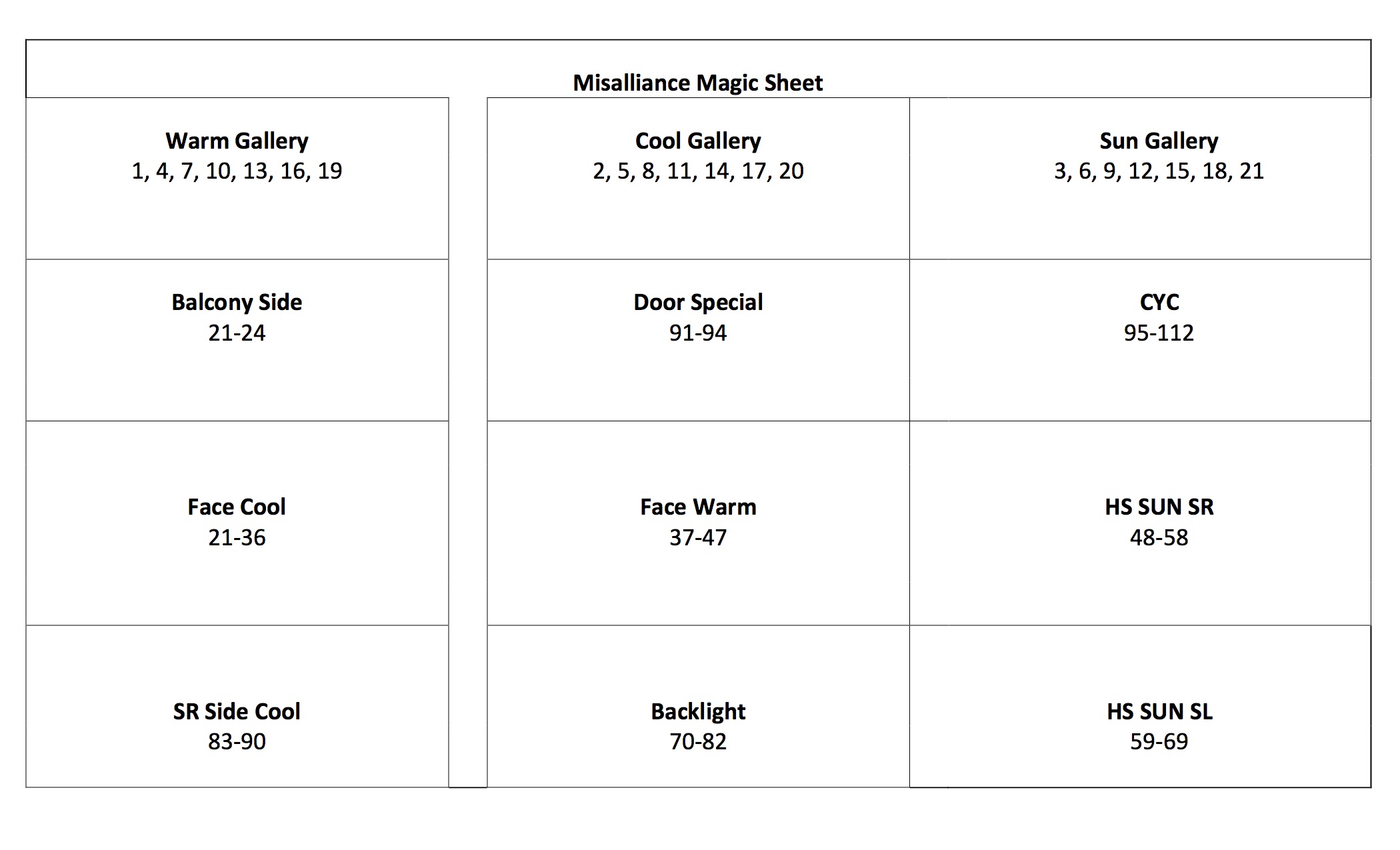

Magic sheet — channels grouped by system.
Plot exported from Vectorworks (educational license watermark visible). Clean re-exports can be swapped in later.
