About the Design
A drafted light plot for Rossini's Barber of Seville, organized into clear systems — front washes, side light, backlight, and a set of color and template specials — supported by a full magic sheet.
Plot & Magic Sheet
Drafted in Vectorworks with a complete instrument schedule and channel hookup. The magic sheet groups the rig by system, from FOH warm/cool through the SL/SR booms and purple specials.

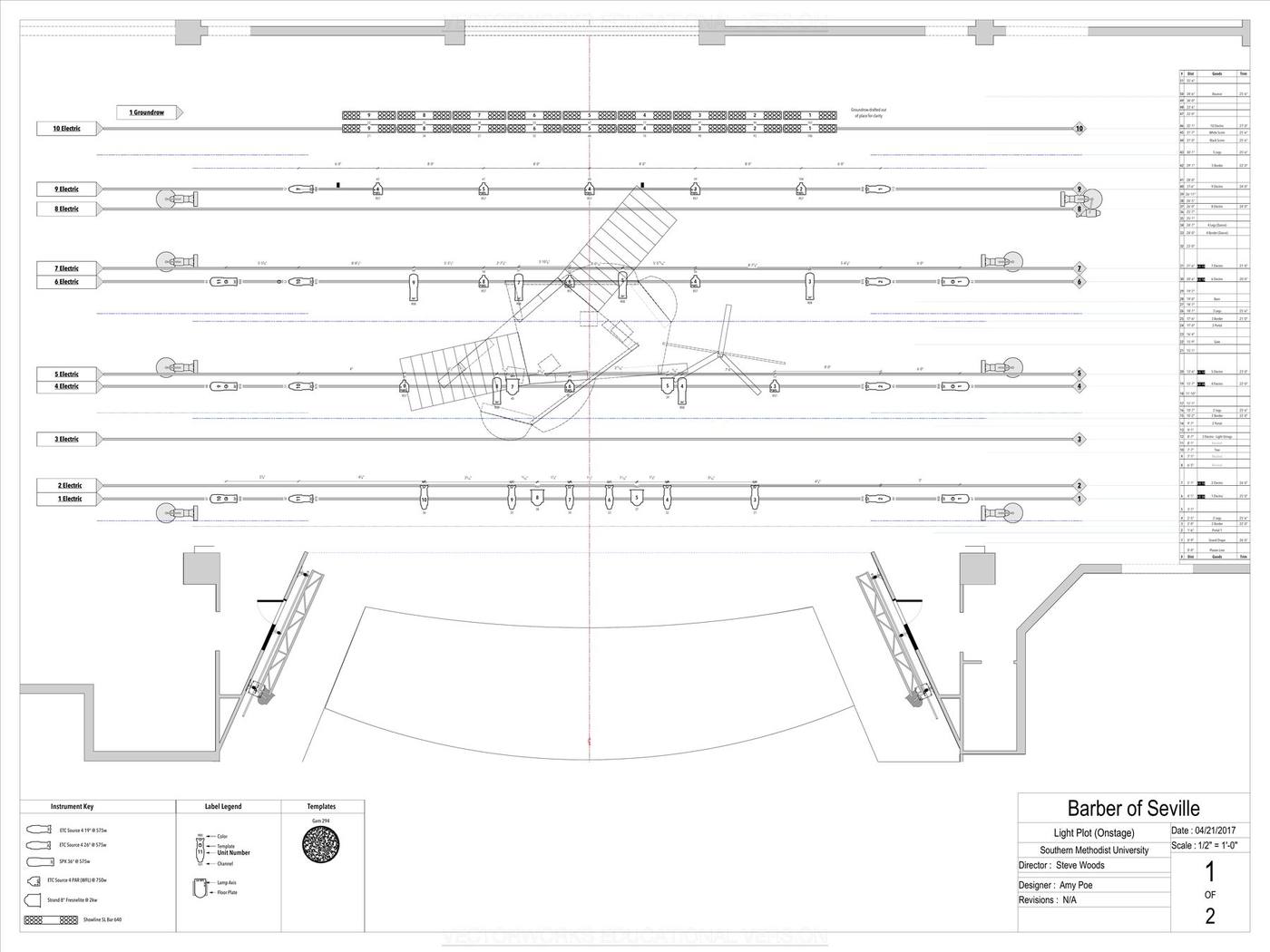

Light plot, sheet 1 of 2 — onstage electrics.

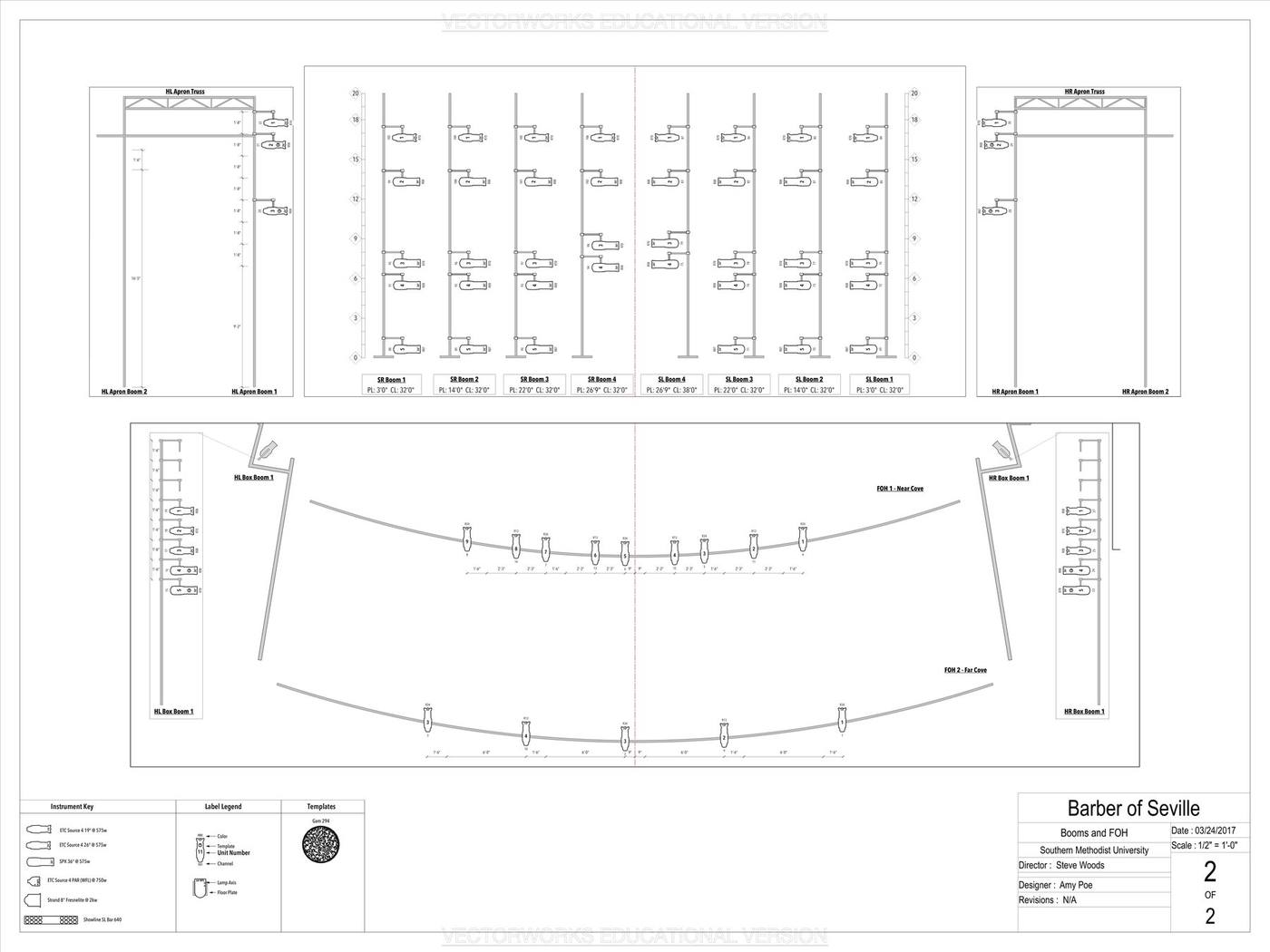

Light plot, sheet 2 of 2 — SR/SL booms, apron trusses & FOH coves.
Magic sheet — rig grouped by system.
127-fixture instrument schedule, exported from Vectorworks and organized by position.
Plot exported from Vectorworks (educational license watermark visible). Clean re-exports can be swapped in later.
